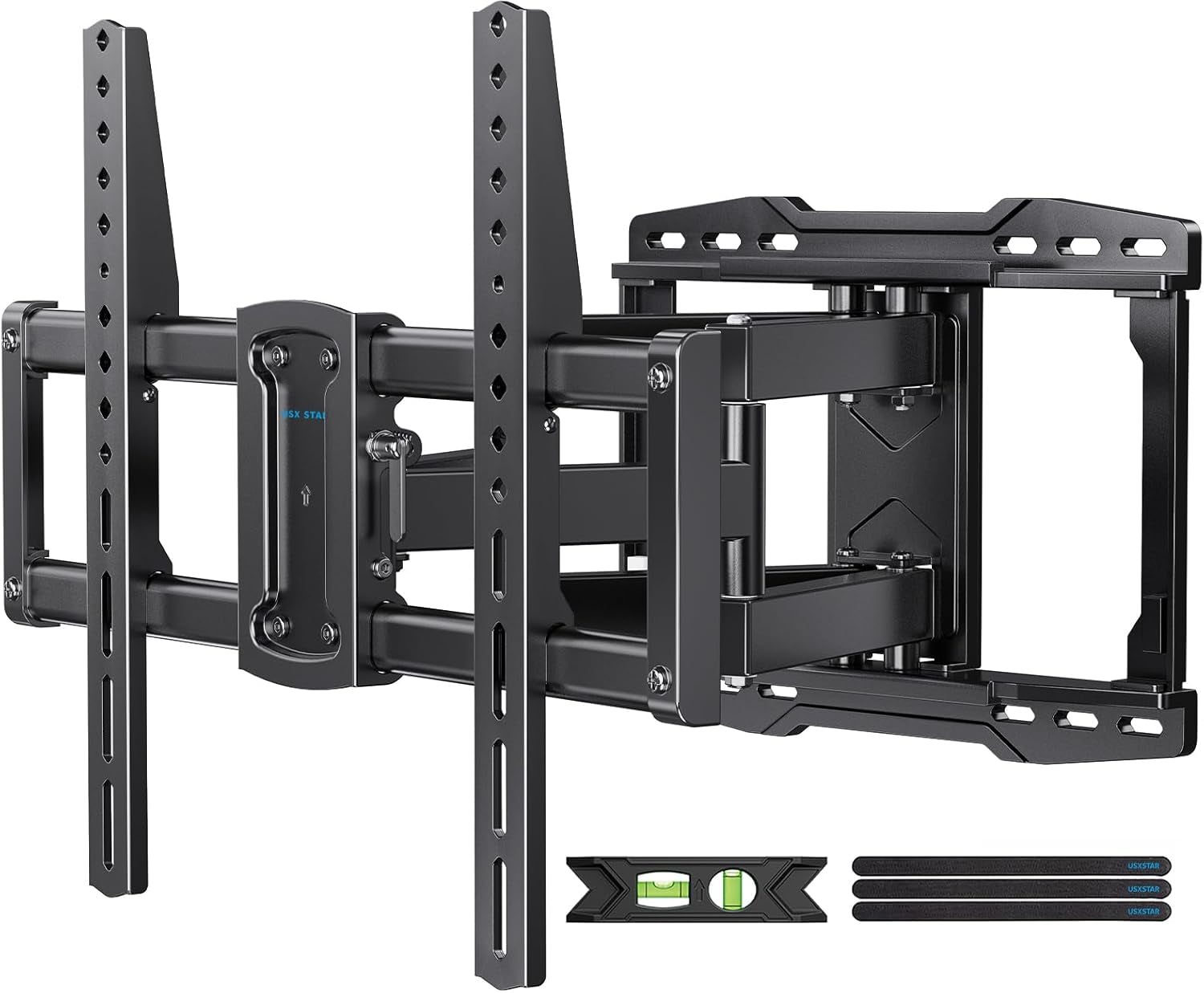

UL Listed Full Motion TV Wall Mount Bracket for Most 37-86 Inch Tvs, Swivel Tilt Extension Level TV Mount, Max VESA 600X400Mm, Holds up to 132Lbs & 16" Wood Studs with Hole Drilling Template

UL Listed Full Motion TV Wall Mount Bracket for Most 37-86 Inch Tvs, Swivel Tilt Extension Level TV Mount, Max VESA 600X400Mm, Holds up to 132Lbs & 16" Wood Studs with Hole Drilling Template

Regular price $68.98 USD
Regular price $124.98 USD Sale price $68.98 USD
Sale Sold out
Shipping calculated at checkout.
Size
Quantity

This product is imported and not made in-house. However, we also offer many products that are custom-made right here in the USA. For more information, please see hawkins-woodshop.com.

UL Listed Full Motion TV Wall Mount Bracket for Most 37-86 Inch Tvs, Swivel Tilt Extension Level TV Mount, Max VESA 600X400Mm, Holds up to 132Lbs & 16" Wood Studs with Hole Drilling Template

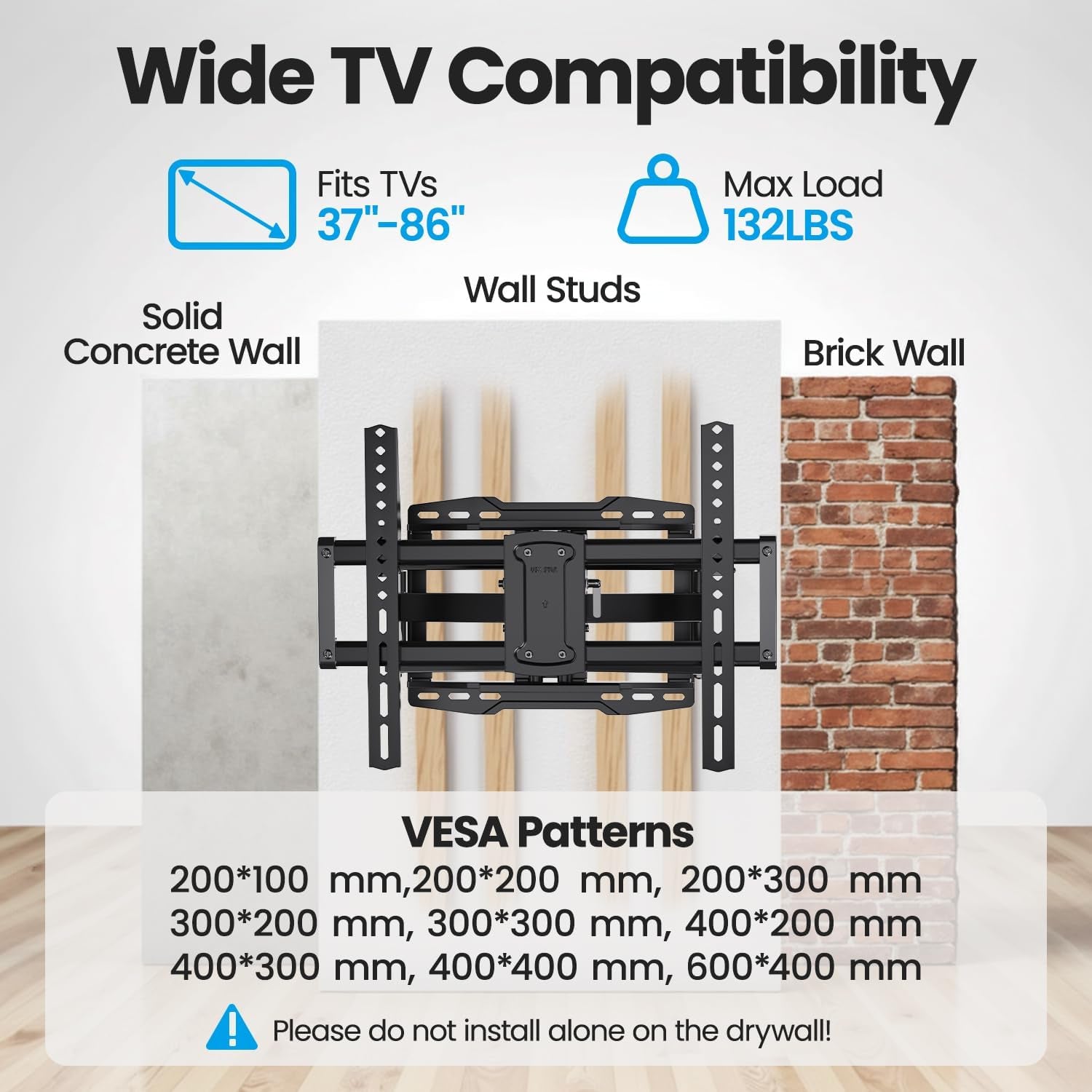

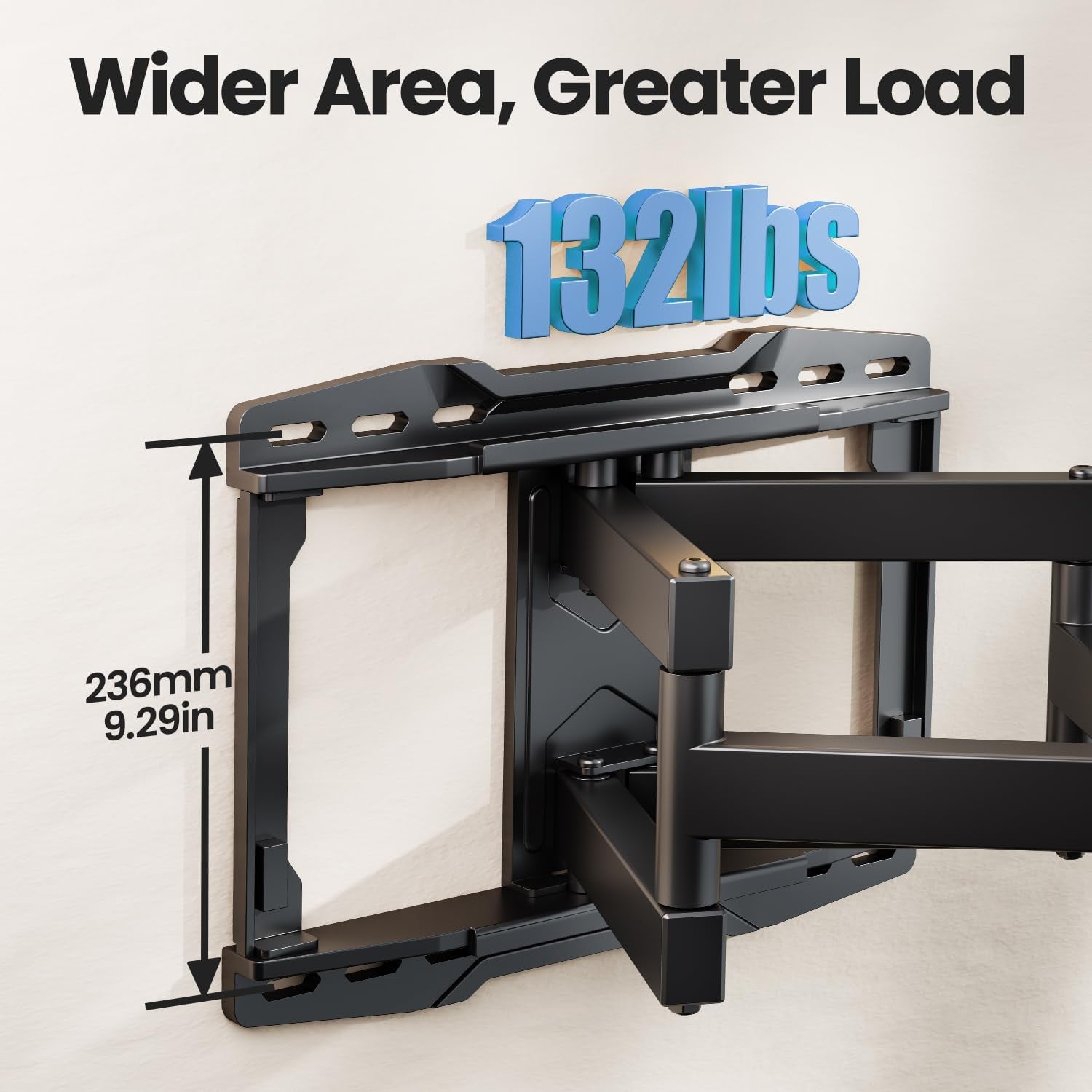

  • STURDY TV WALL MOUNT BRACKET: Fits for most of 37-86"TVs; Support TV up to 132 lbs; Fit wood stud spacing 8", 12", 16", compatible with wood stud, solid brick or concrete wall
  • VESA Standard: Fits for TV VESA sizes 200*100 mm,200*200 mm, 200*300 mm ,300*200 mm, 300*300 mm, 400*200 mm, 400*300 mm, 400*400 mm, 600*400 mm

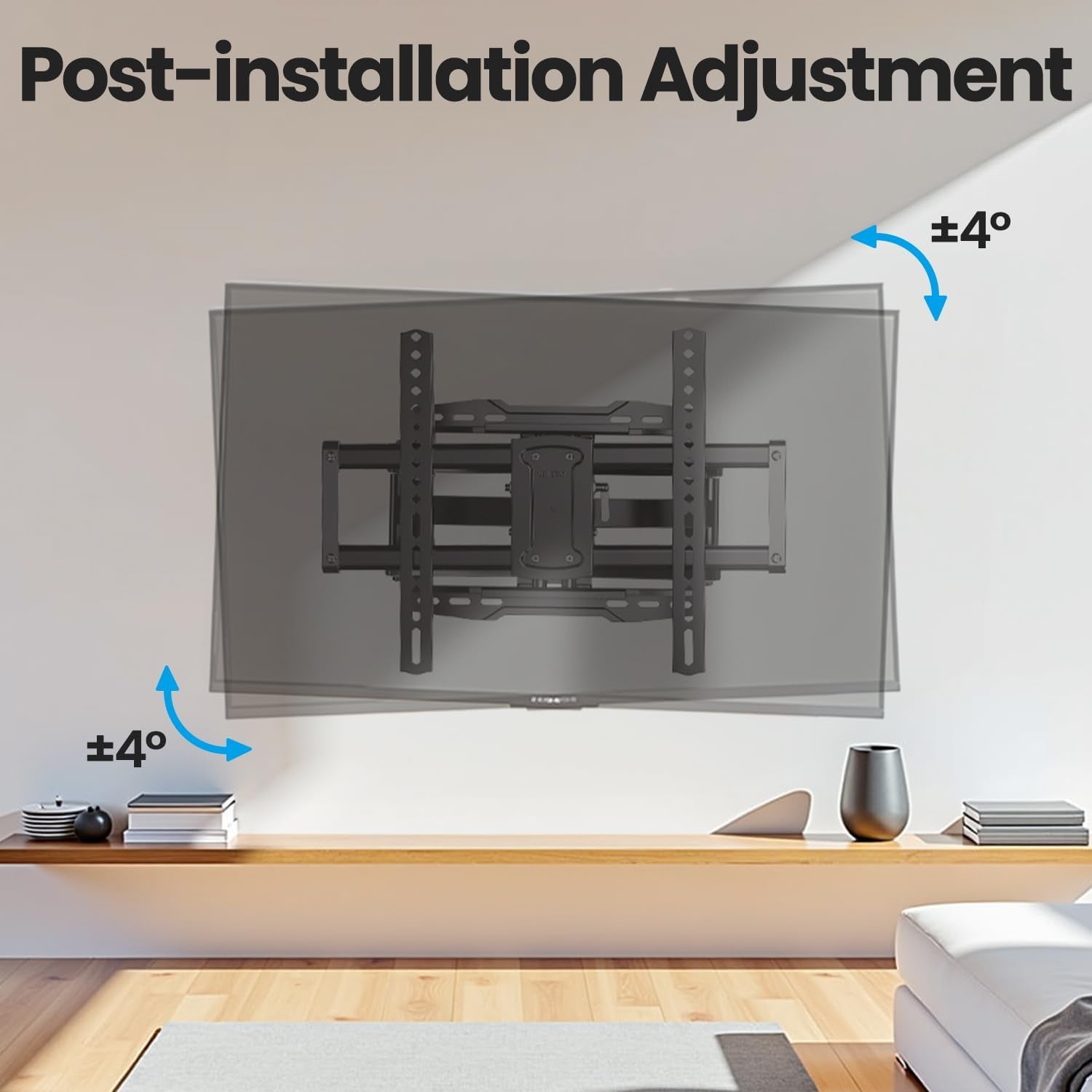

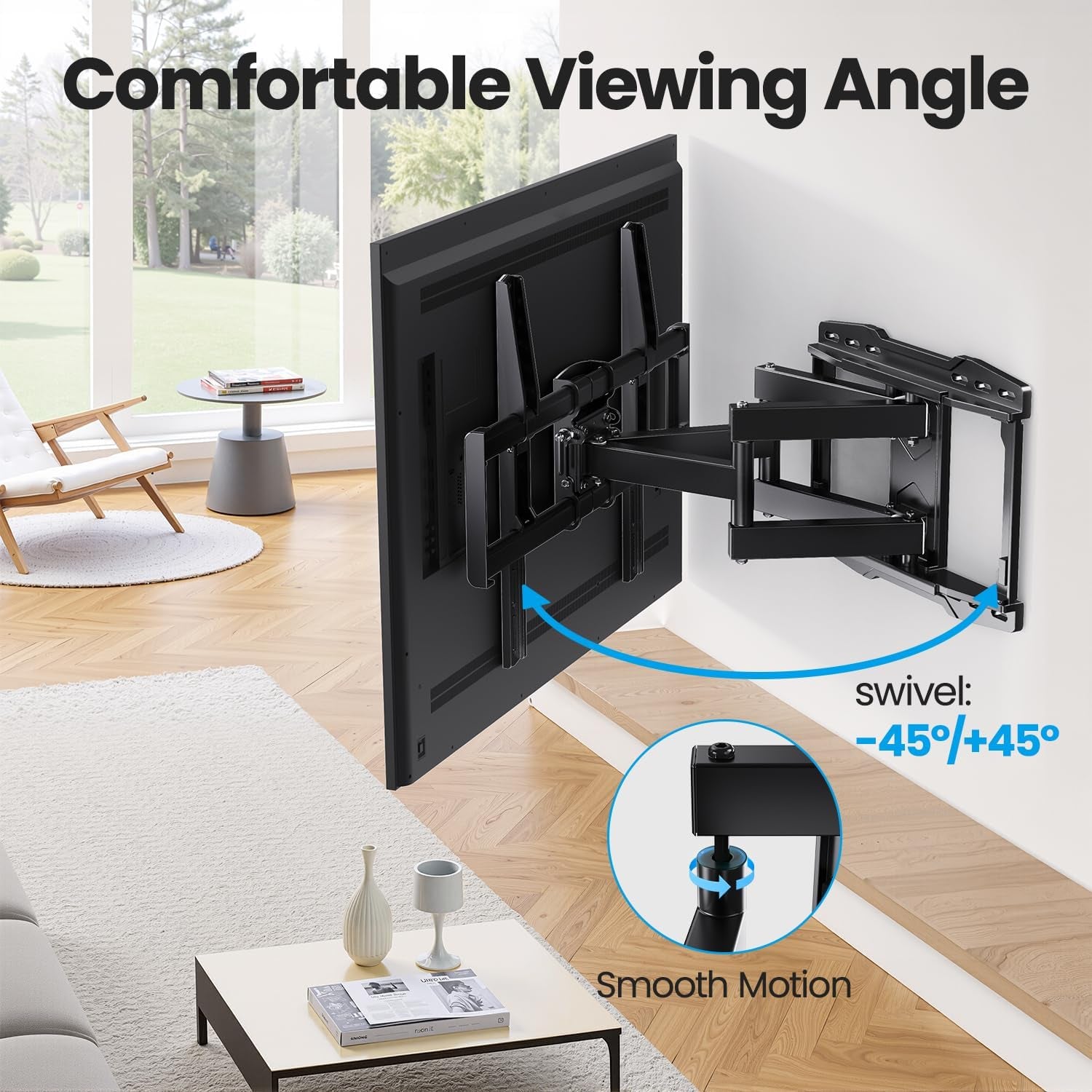

  • ADJUSTABLE VEIW ANGLE: This full motion tv wall mount with +5°/-15° tilt to reduce glare; Swivel tv mount with +/-45° swivel(max swivel angle depends on screen size); Level adjusts +/-4° for maximum viewing flexibility

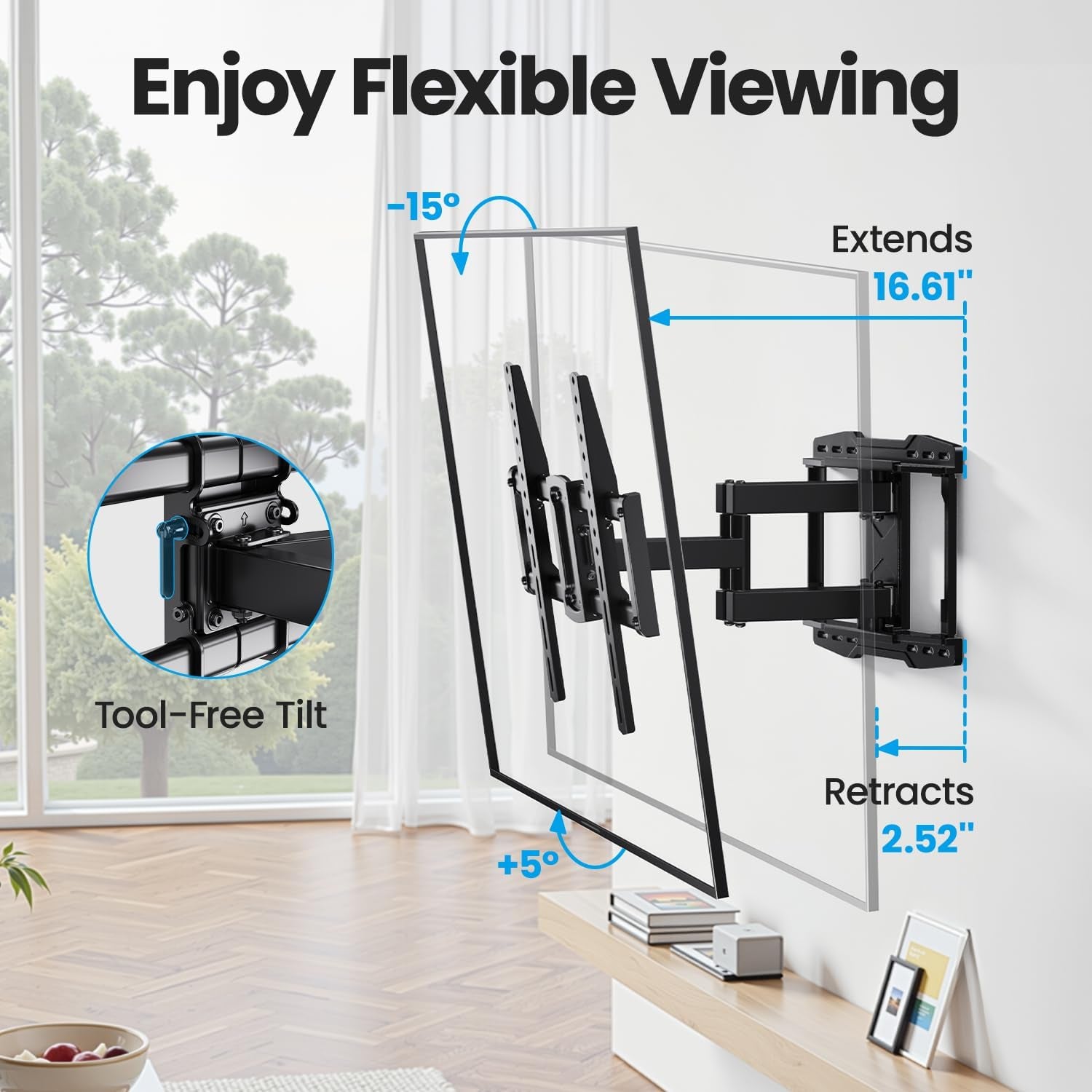

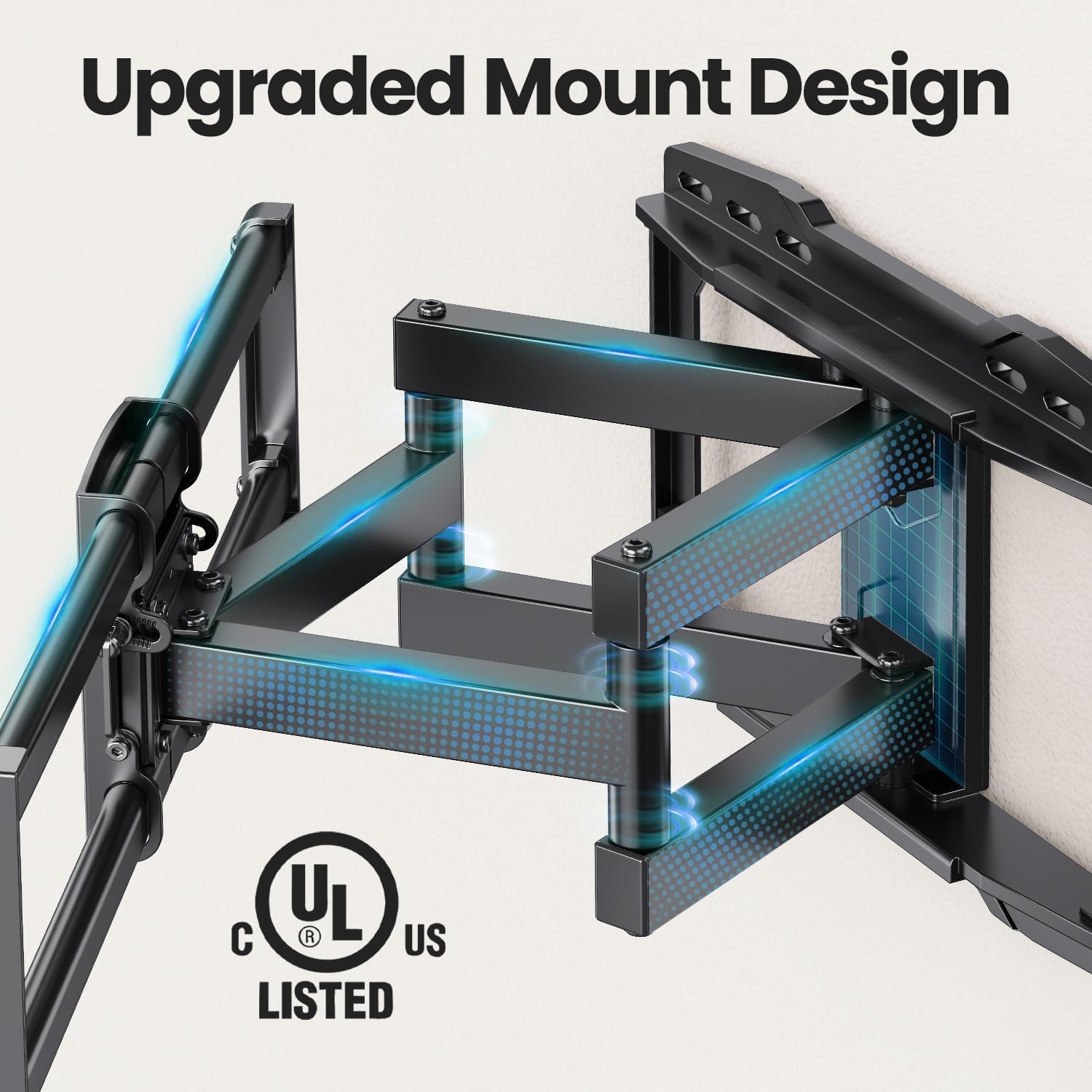

  • SAVING SPACE: Dual articulation arm design ensures reliable strength; This articulating tv mount can retract 2.52 inch from the wall in home position to save space and also extends up to 16.61 inch from the wall; With cable ties manage TV cables
  • EASY INSTALLATION: This wall mount tv bracket includes drilling template, bubble level, detailed instruction, standard mounting hardware in pre-labeled bags help you easily finish installation

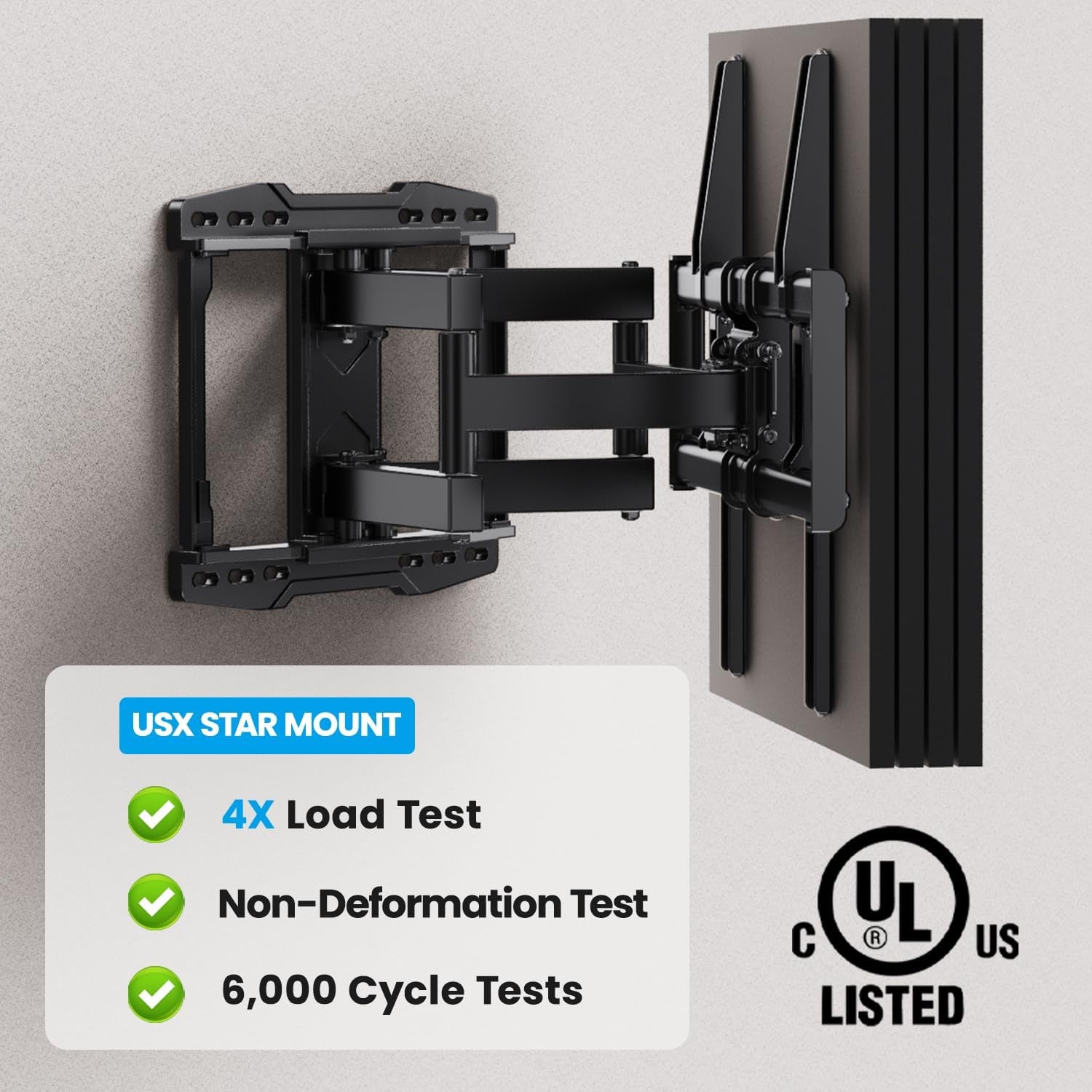

  • BUY WITH CONFIDENCE: All TV wall mounts are designed and tested as international safety standard and provide ten-year product support
  • ANCHORS NEEDED: Please note the concrete anchors are sent per request, size 10X50mm, please let us know if you need

Product description

Installation Video Guide 3-Step Easy Installation

  1. Attach the Bracket to TV


    The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

    Attach the Bracket to TV

    Merchant Video
  2. Mount Wall Plate on Wall


    Please note this tv wall mount is designed for wood stud and solid concrete wall, can not be installed in drywall alone!

    The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

    video

    Merchant Video
  3. Hang the TV onto Wall Plate


    Please check the wall plate security before hanging the tv onto the wall plate.

    The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

    Hang the TV onto Wall Plate

    Merchant Video
  • How do I know if this TV mount is suitable for my TV?

    1. Weight up to 132 LBS

    2. VESA pattern, max 600x400mm, min 200x100mm

    3. Wall Types : Up to 16‘’ wood wtuds and solid brick/concrete wall

  • How to configure VESA holes?

    VESA= horizontal x vertical distance (the four holes on the back of the TV)

  • What kinds of wall type can the tv wall mount be mounted on?

    8‘’ up to 16‘’ Wood studs and solid brick and concrete wall.(DO NOT MOUNT ON DRYWALL ALONE)

    This bracket supports a maximum 16 inches wood studs spacing. For larger 24 inches studs, we have "More for Your Choice"

  • Are screws included?

    All standard mounting hardware included(TV Screws, Spacers, Washers, Lag bolt, Allen key), bubble level and clear instruction, easy installation

    Concrete anchors should be sent separately if needed

More for Your Choice

Add to Cart
Add to Cart
Customer Reviews
4.7 out of 5 stars 6,722
4.7 out of 5 stars 4,039
4.7 out of 5 stars 6,722
4.7 out of 5 stars 6,722
4.7 out of 5 stars 6,722
4.7 out of 5 stars 6,722
4.7 out of 5 stars 4,039
Price
$19.99$19.99 $20.57$20.57 $49.99$49.99 $29.49$29.49 $23.99$23.99 $16.99$16.99 $13.48$13.48
TV Size
37"-82" 37"-82" 42"-86" 32"-70" 26"-60" 26"-60" 26"-60"
Max Load
132lbs 132lbs 110lbs 110lbs 77lbs 99lbs 99lbs
Max VESA
600x400mm 600x400mm 600x400mm 400x400mm 400x400mm 400x400mm 400x400mm
Tilt Angle
-9° / +5°/-15° +5°/-15° +5°/-15° / -10°
Swivel Angle
/ / +45°/-45° +45°/-45° +90°/-90° / /
Fits Stud Spacing
Up to 24" Up to 24" Up to 24" Up to 16" single stud Up to 16" Up to 16"
Extend
/ / 2.69"-16.79" 2.58"-13.9" 2.7"-16.67" / /
Level adjusts
/ / +/- 4° +/- 4° +/- 4° / /

Item Weight 12.47 pounds
Mounting Type Wall Mount
Color Black
Material Alloy Steel
Compatible Devices Television
Movement Type Articulating
Maximum Tilt Angle 15 Degrees
Color Name Black
Package Dimensions 17.63 x 11.97 x 3.03 inches
Size Movable 37-86inch
